TD-32-ADJX66-OS/SF
Additional Photos

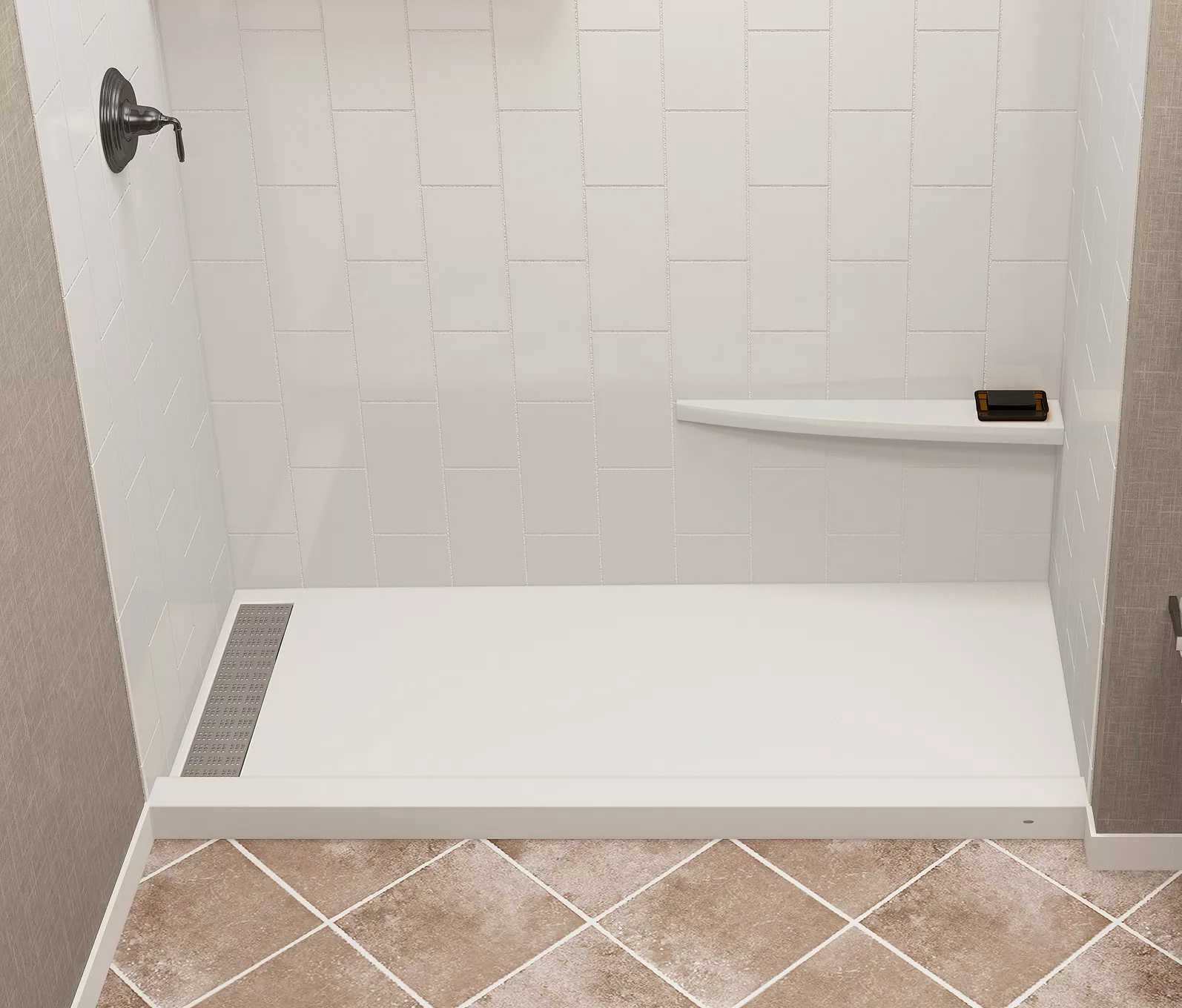

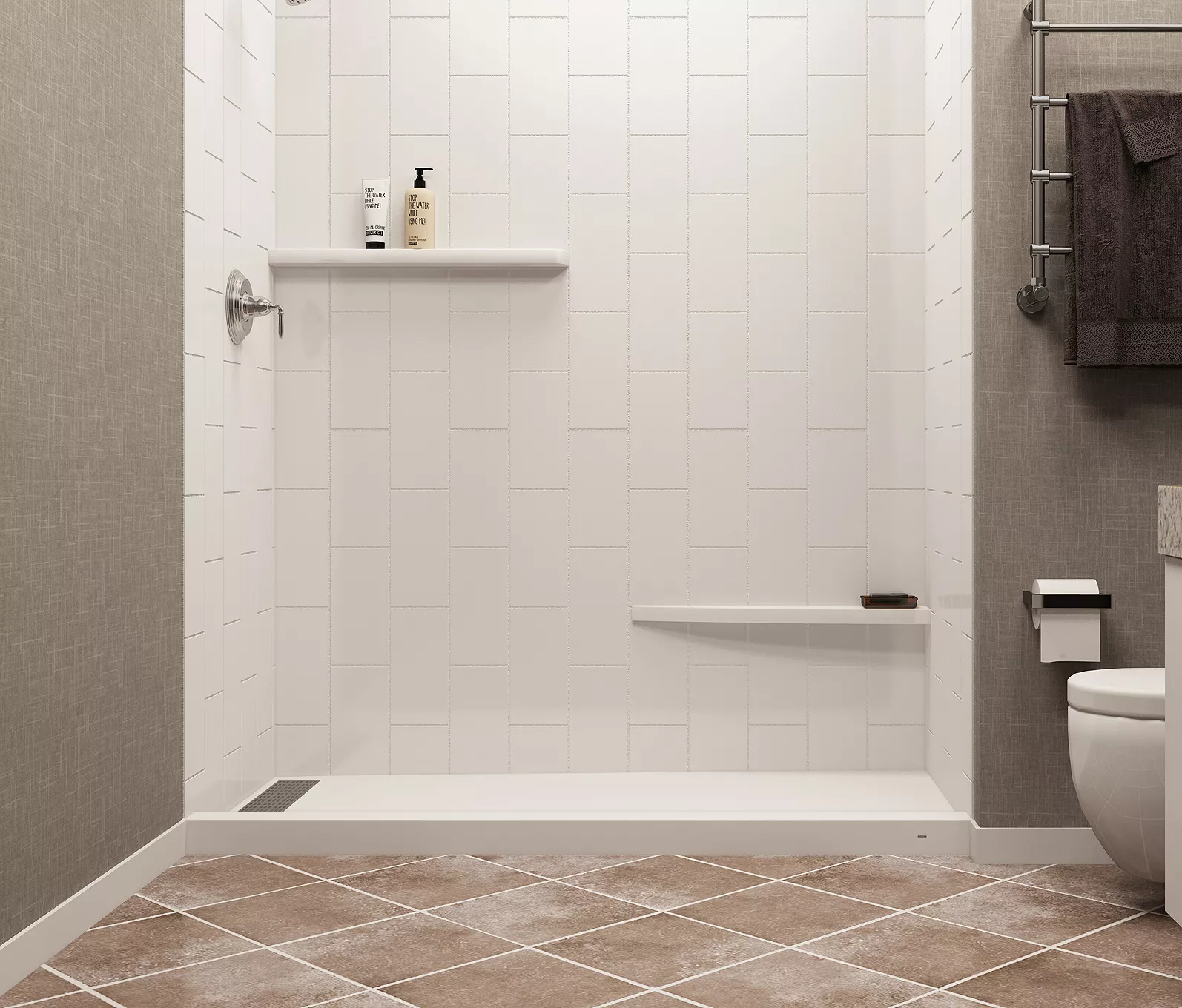

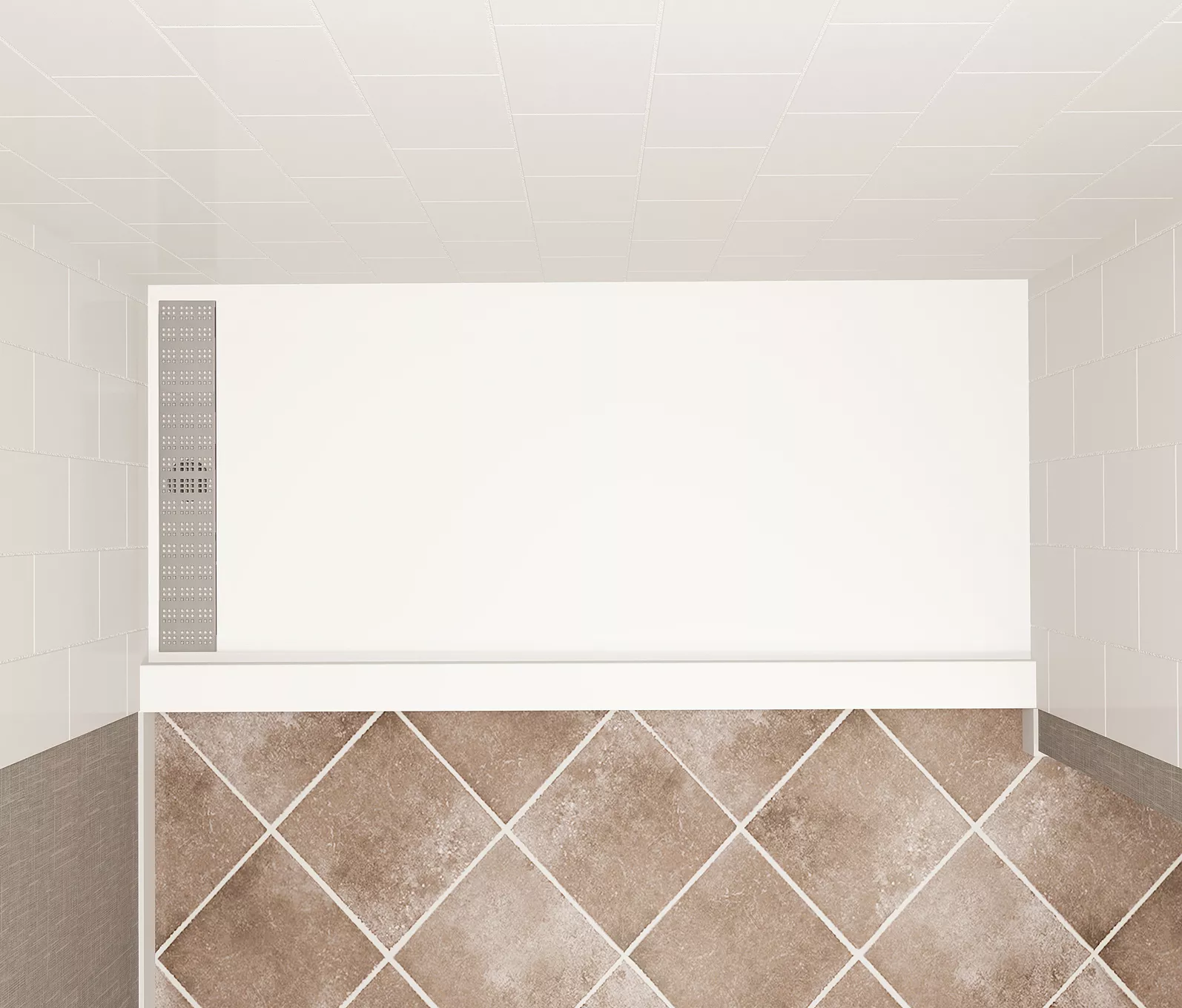

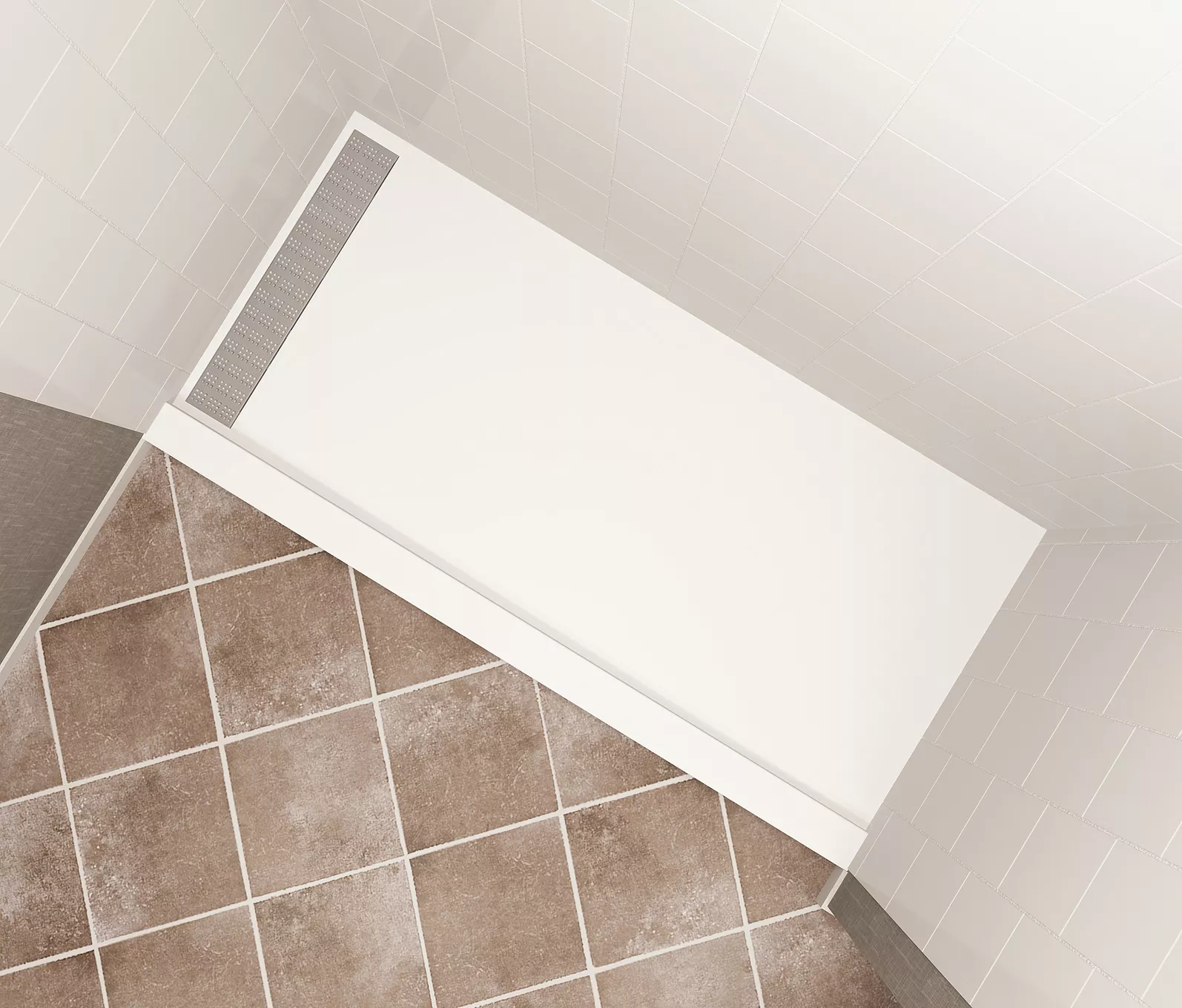

Rendering; Adj and 4260 Trench - main - L Rendering; Adj and 4260 Trench - main - R
Detail
1-Decorative Trench Drain Cover - detail 2-Standard Trench Drain Cover - detail 3-Cream Powder Coated Trench Drain Cover 4-White Powder Coated Trench Drain Cover 5. Decorative Powder Coated Trench Drain Cover

Adjustable Length Trench Drain Shower Pan with an Off-Set Drain and a Lightly Textured, Non-Slip Floor

TD-32"- ADJ x 66" - OS/SF

Specifications:

  • Product: Shower Pan
  • Category: Trench Drain
  • Model: Adjustable Length
  • Pan Size: 32" d x up to 66" w max
  • Floor Pattern: Traditional
  • Finish: Textured, Non-Slip
  • Backwall: Up to 65 5/8"
  • Side walls: 32"
  • Drain Location: Off-Set - Left
  • Center of drain measures:
    • 14 1/2" from backwall
    • 3 1/2" from side wall
  • Drain Opening: 3 1/4"
  • Trench Width: 4 1/2"
  • Drain Cover: 27"
  • Flange: ~4" on side and backwalls - attached at factory
  • Front Curb: Separate, 3" w x 3" h
  • Weight: Variable by size
  • Material: Cast Marble
  • Standard: Mincey ClassicTM

Standard Features:

  • Solid one-piece construction
  • Abrasion resistant gel coat surface
  • Seamless
  • Pre-leveled - rests on subfloor
  • Extremely sanitary
  • Will not mold or mildew
  • Easy to install
  • Maintenance free
  • 10 year limited warranty
  • Made in the U.S.A.

*Stainless Steel Trench Drain Cover Options:

  • Solid
  • Decorative
  • Powder Coated:
    • Cream - matte or gloss
      • Solid
      • Decorative
    • White - matte or gloss
      • Solid
      • Decorative
    • Ivory - matte or gloss
      • Solid
      • Decorative
    • Putty - matte or gloss
      • Solid
      • Decorative

Additional Accessories Options:

*Note: Shower pan includes your choice of 1 - Solid or 1 - Decorative Trench Drain cover. All Powder Coated Stainless Steel covers carry an up-charge.

NOTE: Drain is not included with pan

Sample Request Clarification: The Trench Drain Cover Finish Options shown below are for color and finish comparison only. We do not offer samples of the different drain covers.



Available inMincey Classic - Standard cast marble
Recommended Colors

Request A Color Sample
