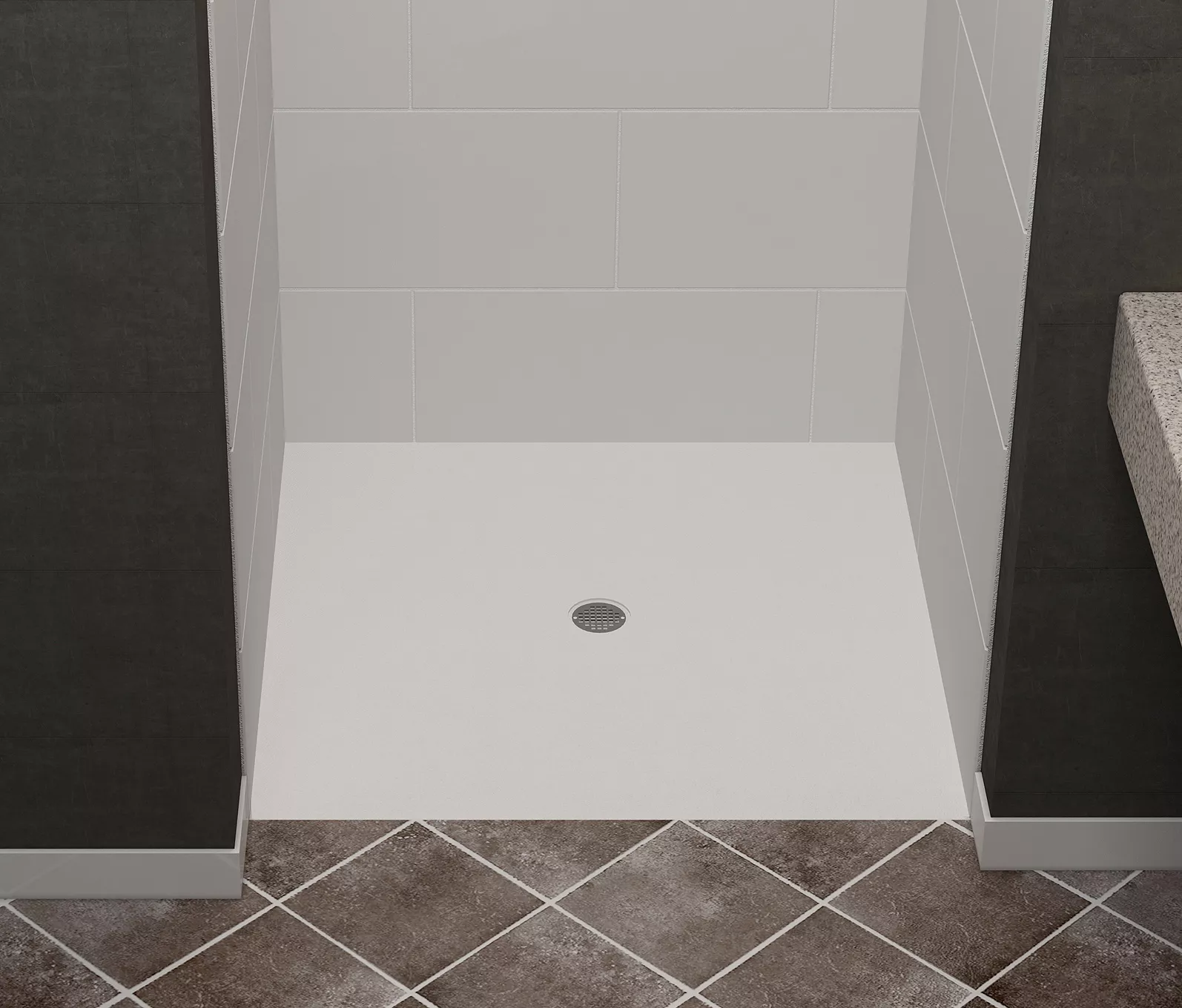

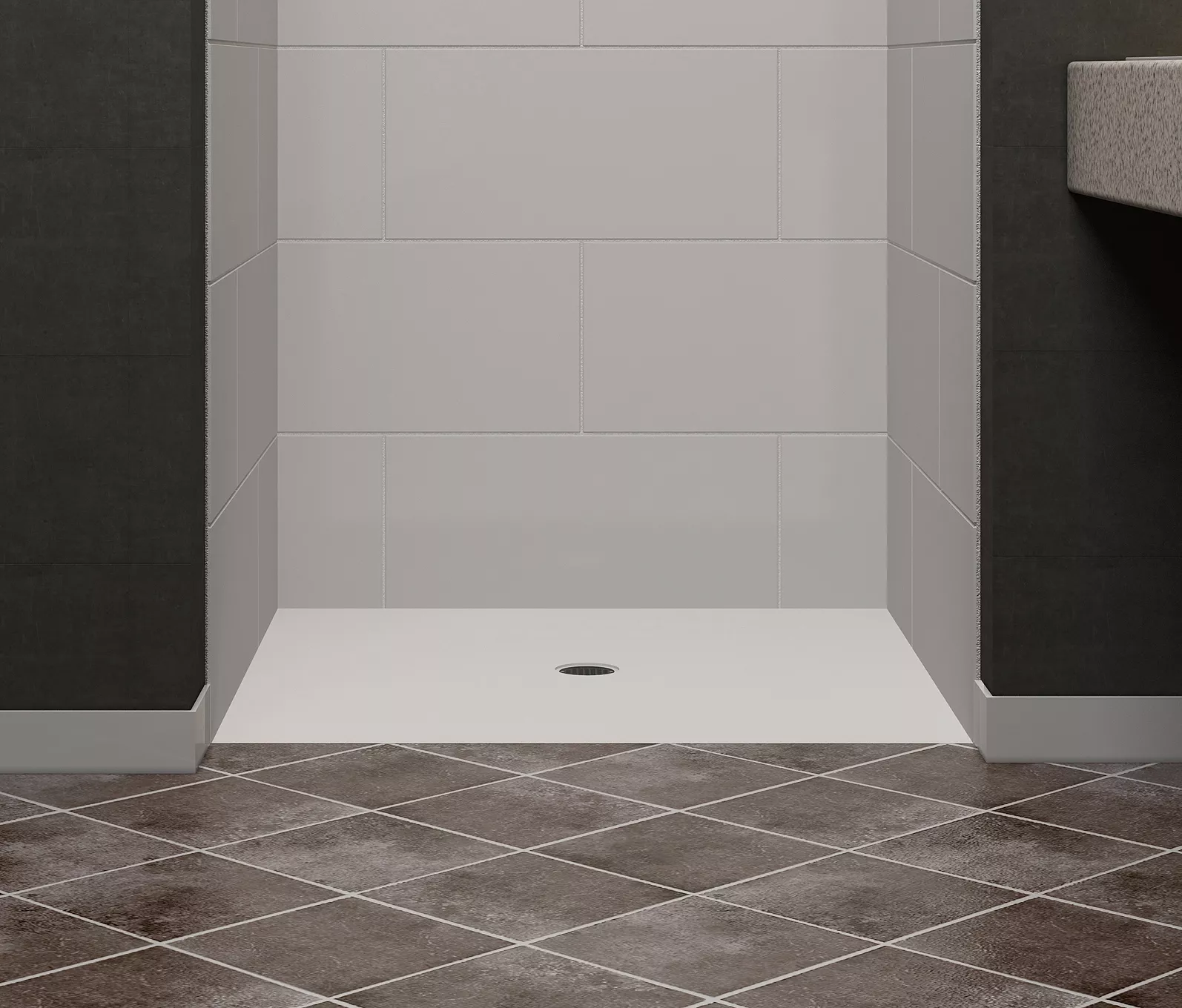

TP-3838: 38 x 38 Center Drain Transfer Shower Pan

Standard Features
  • Solid one-piece cast marble
  • Durable gel coat surface
  • Pre-leveled-rests on subfloor
  • Extremely sanitary
  • Will not mold or mildew
  • Easy to install
  • Maintenance-free
  • Manufactured in the U.S.A.
  • Recommended: add Shower Pan Liners to protect pans during construction
Applications
Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
  • TP-3838-C-SF
Technical Specifications
ModelTransfer Pan
Pan Size38" x 38"
MaterialCast Marble
Floor PatternTraditional
FinishMatte, Textured, Non-Slip
Backwall38"
Side Walls38"
Drain LocationFixed - Center
Center of Drain Measures19" from backwall, 19" from side walls
DimensionsNOTE: Finished product dimensions may vary +/- 1/8" from drawings
Front CurbNone. Floor will tile up to the entrance of the shower pan
Flange~4" on side and back walls - attached at factory
Weight~128#
StandardMincey Classic™
SlopePan is sloped toward the drain at 2%
CSI Number22 42 23
Colors
Special Notes

Standards and Ratings:

  • CSA B45-5/IAPMO Z124-2011
  • MAS Certified Green. Compliant with ANSI/BIFMA X7.1 Standard
  • ANSI A137.1 (average rating of 0.65)
  • ANSI A326.3 (average rating of 0.72)
  • ANSI/NFSI B101.3 (average rating of 0.66)

Suggested Drains:

  • Sioux Chief Mfg. model: 825-2P – PVC
  • Oatey part number: 42045 – PVC
  • Oatey part number: 42150 – Brass

NOTE: Finished product dimensions may vary +/- 1/8" from drawings

NOTE: Drain is not included with pan

Brief Description: A transfer pan has minimum inside finished dimensions of 36" x 36". The entrance must be flush with the entry floor, just like a roll-in pan. The shower must also have a fold down seat. It can then be used by someone in a wheelchair who wants the ability to roll up to the shower and transfer over to the seat in the shower.
