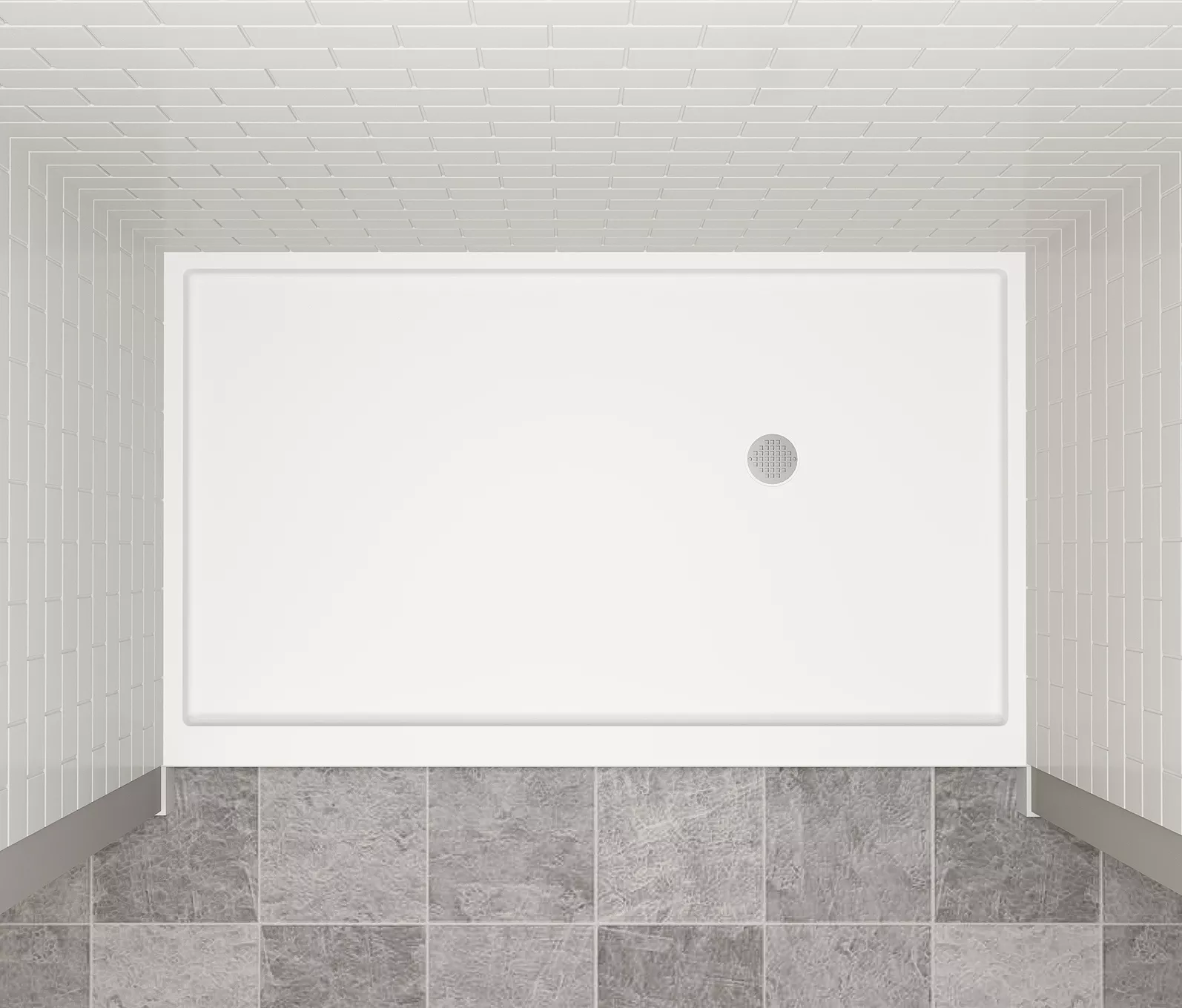

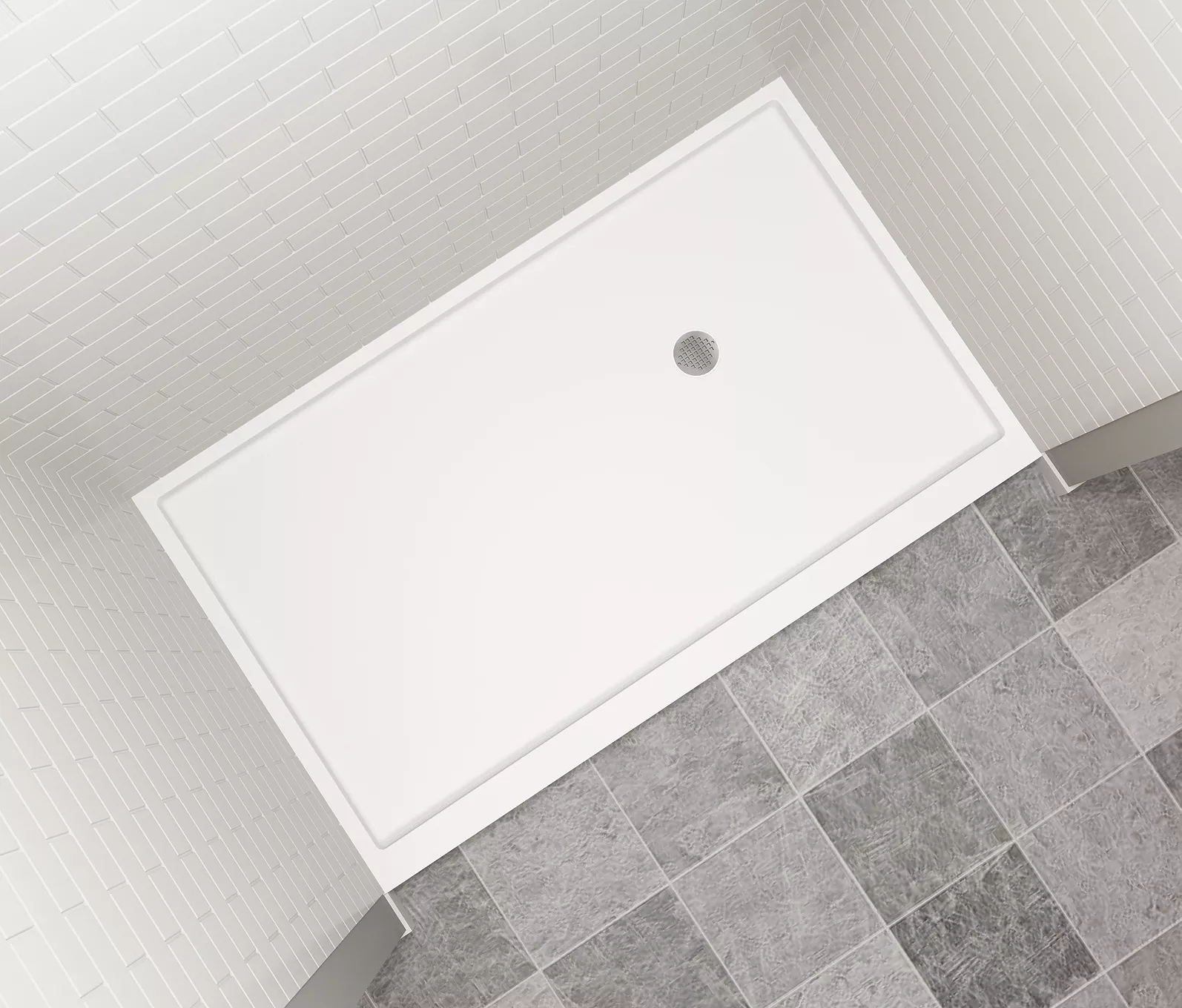

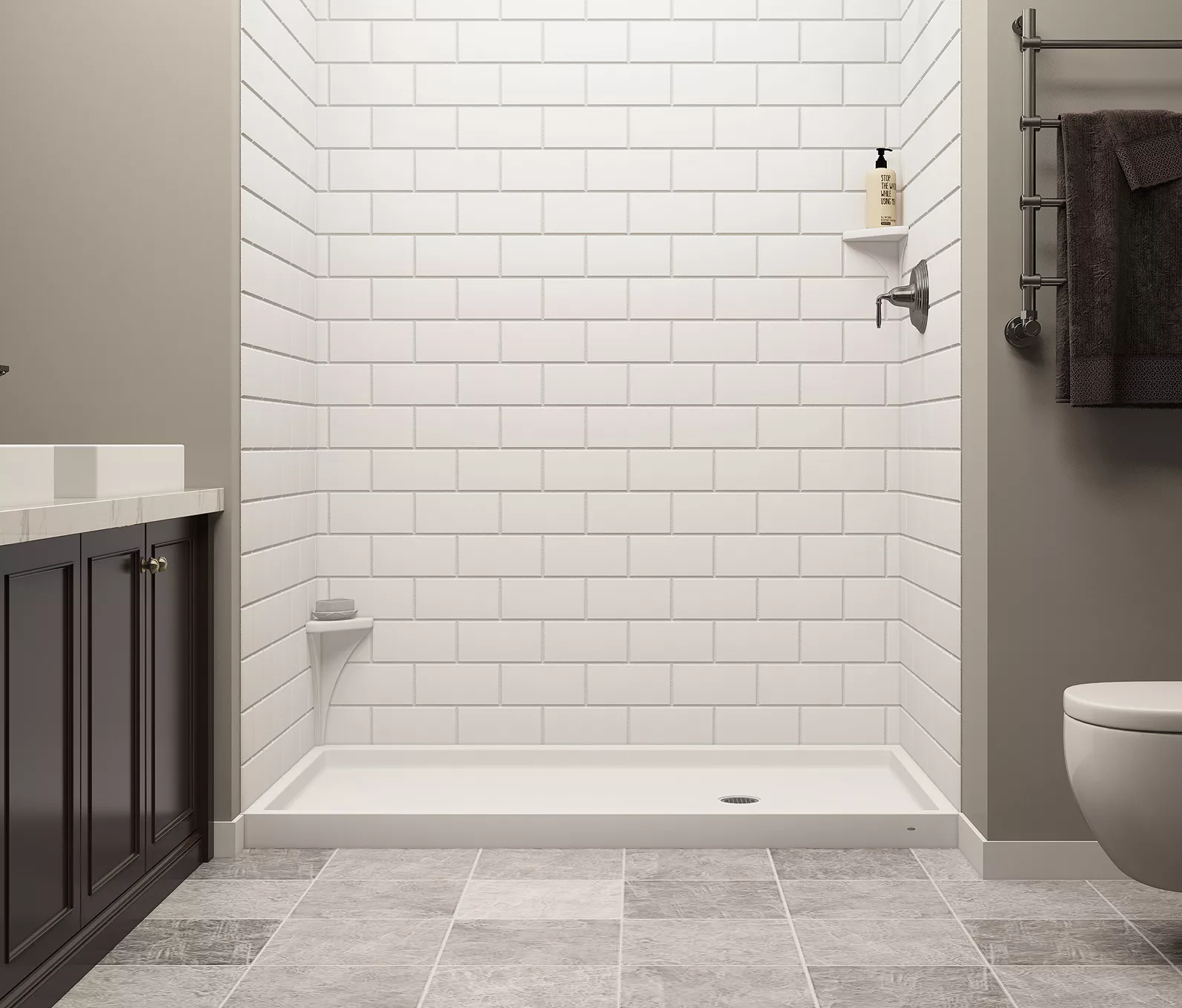

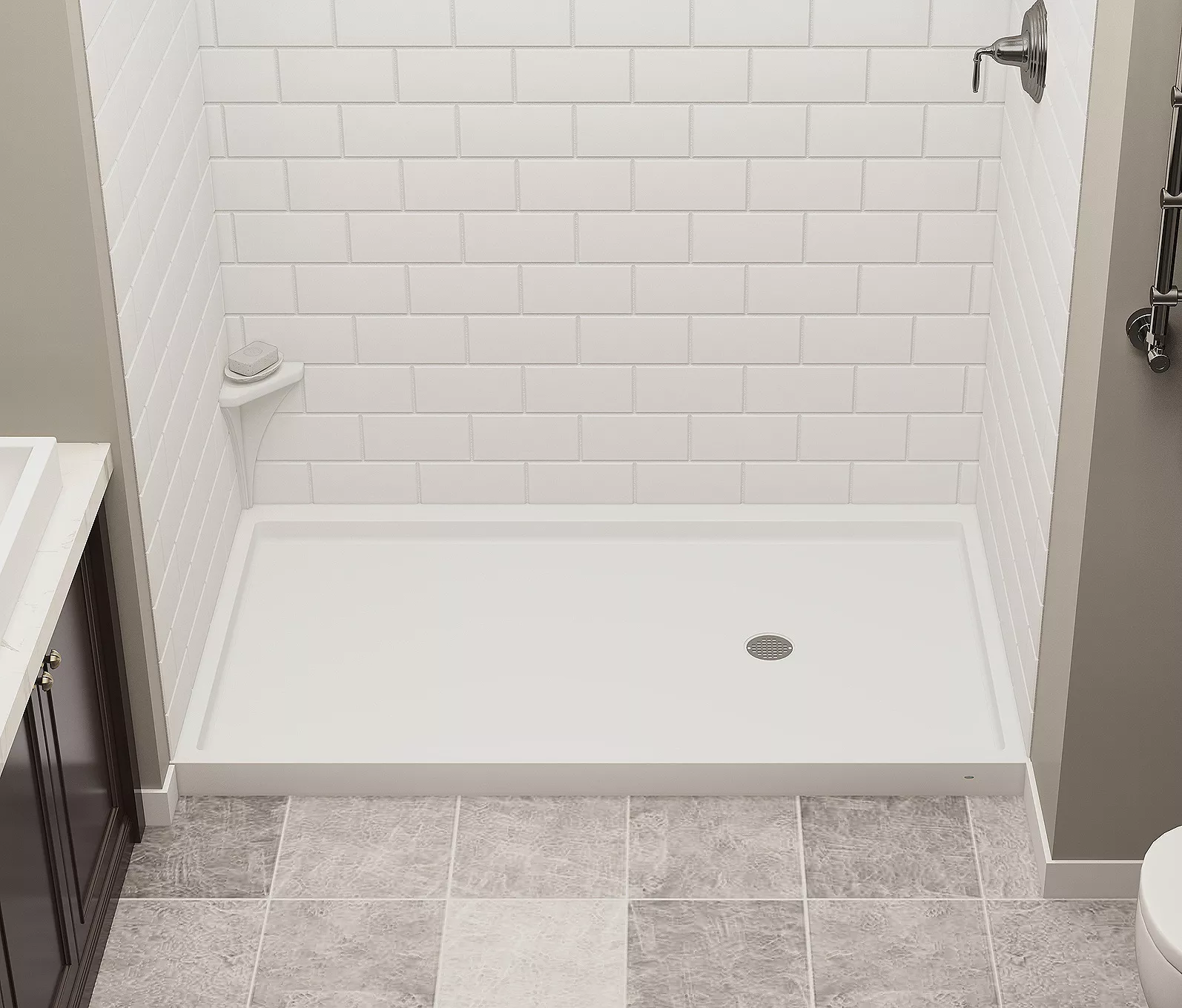

SP-3660: 36 x 60 Shower Pan - 16" Offset Drain

Standard Features
  • Solid one-piece cast marble
  • Durable gel coat surface
  • Pre-leveled-rests on subfloor
  • Extremely sanitary
  • Will not mold or mildew
  • Easy to install
  • Maintenance-free
  • Manufactured in the U.S.A.
  • Recommended: add Shower Pan Liners to protect pans during construction
Applications
Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
  • SP-3660-16inOS-SF
Technical Specifications
ModelOffset Drain Pan
Pan Size36" x 60"
MaterialCast Marble
Floor PatternTraditional
FinishMatte, Textured, Non-Slip
Backwall59 3/4"
Side Walls35 7/8"
Drain Location16 1/4" Offset - (specify left or right)
Center of Drain Measures14 3/4" from backwall, 16 1/4" from side wall
DimensionsNOTE: Finished product dimensions may vary +/- 1/8" from drawings
Drain Opening3 1/4"
Front CurbIntegral - 3" w x 3" h
Flange1" on side and backwalls - attached at factory
Weight~ 244#
StandardMincey Classic™
SlopePan is sloped toward the drain at 2%
CSI Number22 42 23
Colors
Special Notes

Standards and Ratings:

  • CSA B45-5/IAPMO Z124-2011
  • MAS Certified Green. Compliant with ANSI/BIFMA X7.1 Standard
  • ANSI A137.1 (average rating of 0.65)
  • ANSI A326.3 (average rating of 0.72)
  • ANSI/NFSI B101.3 (average rating of 0.66)

Suggested Drains:

  • Sioux Chief Mfg. model: 825-2P – PVC
  • Oatey part number: 42045 – PVC
  • Oatey part number: 42150 – Brass

NOTE: Finished product dimensions may vary +/- 1/8" from drawings

NOTE: Drain is not included with pan
