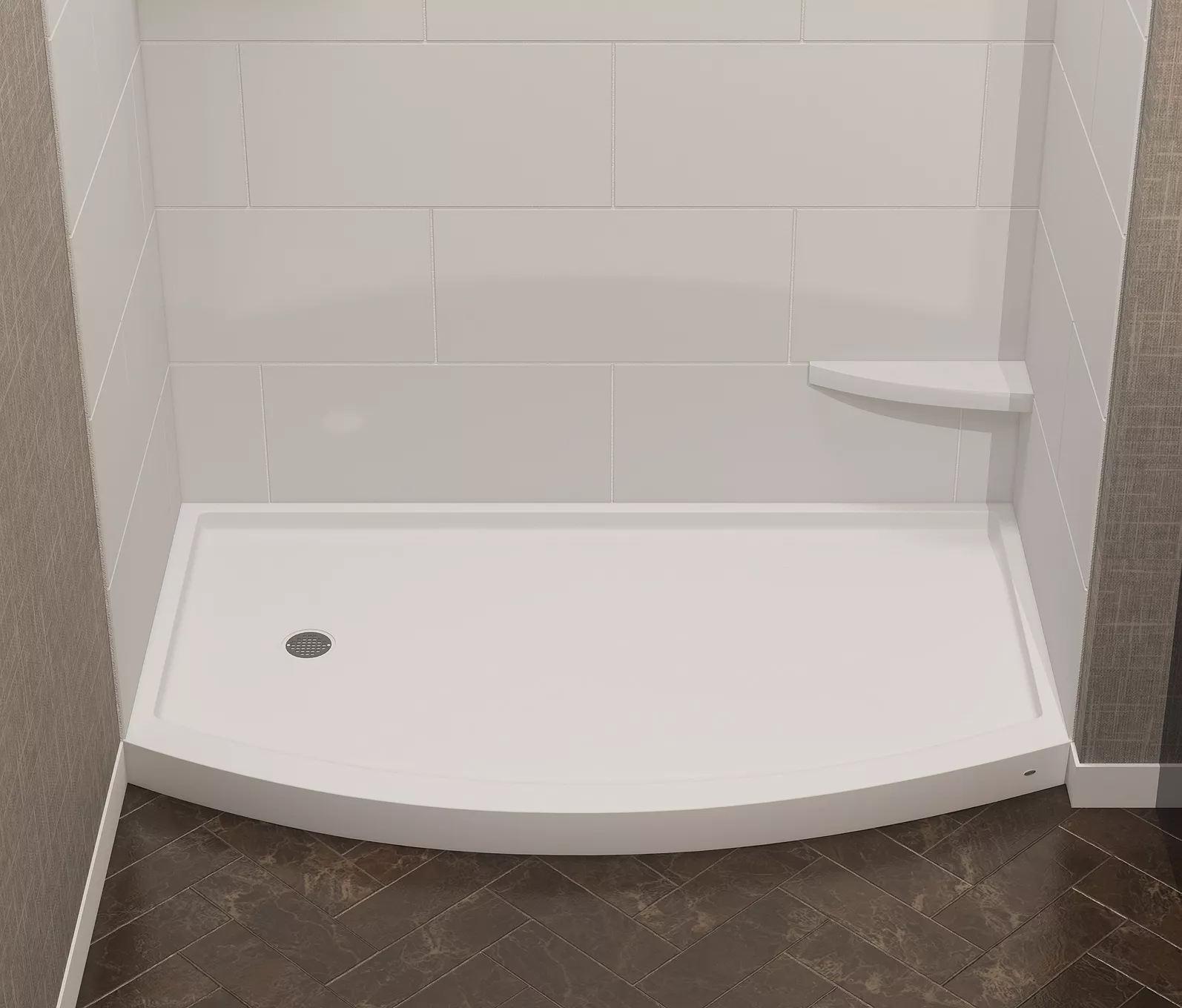

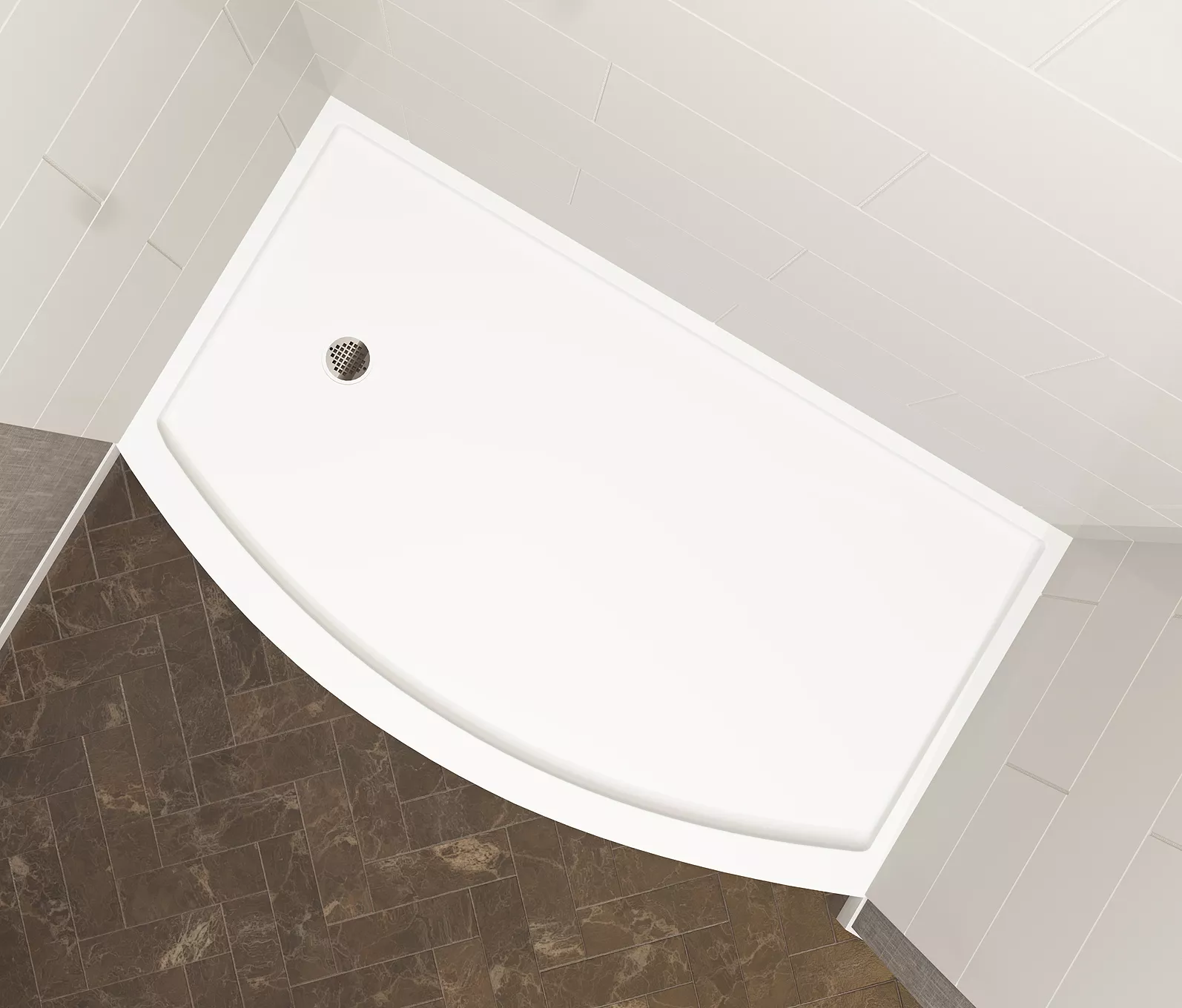

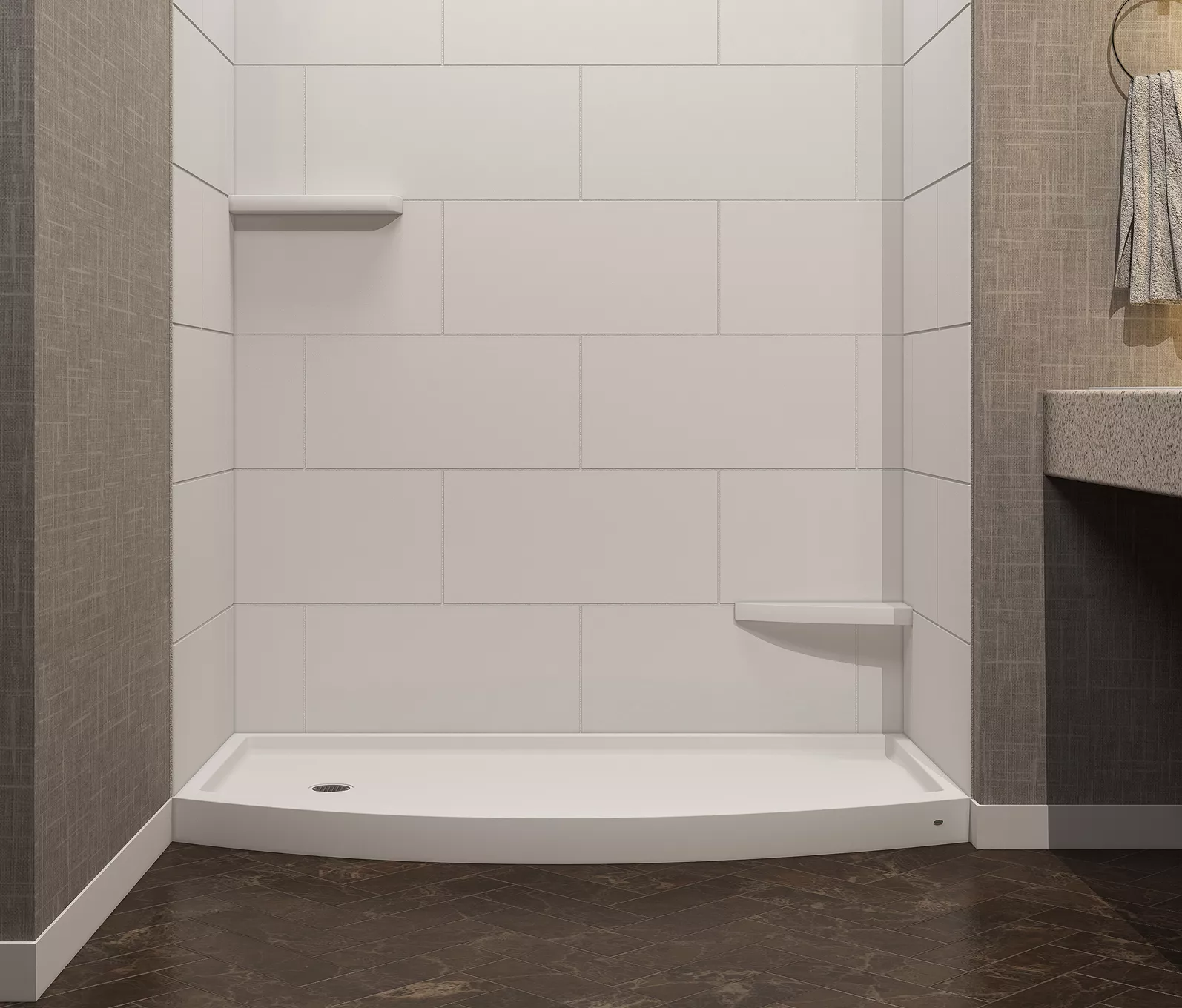

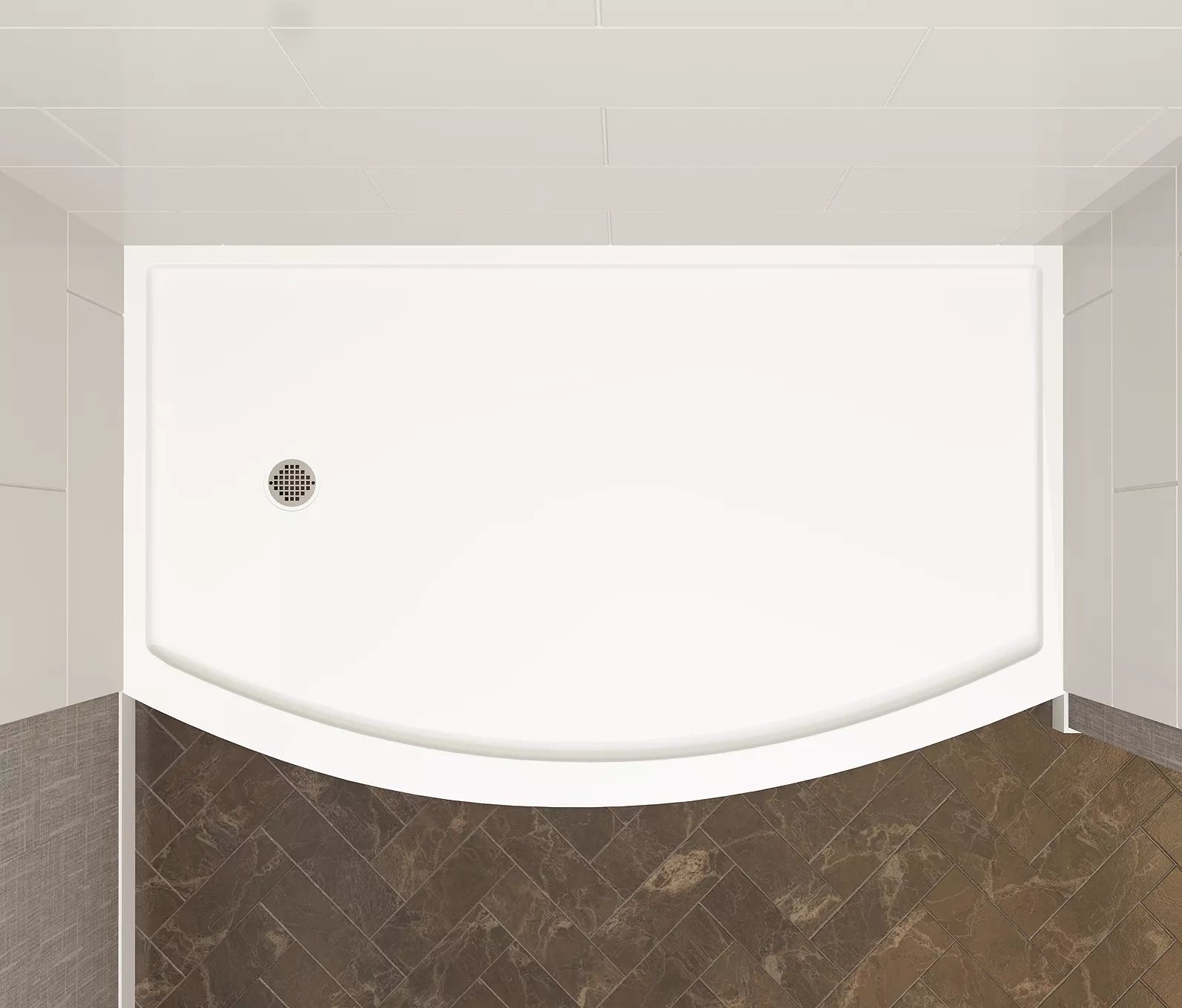

CFP-30-3660: 30-36 x 60 Curved Front Renovation Shower Pan

Standard Features
  • Optimal for tub-to-shower conversions - drain is in the same place as a typical tub drain
  • Curvature provides extra room in the shower
  • Solid one-piece cast marble
  • Durable gel coat surface
  • Pre-leveled - rests on subfloor
  • Extremely sanitary
  • Will not mold or mildew
  • Easy to install
  • Maintenance-free
  • Manufactured in the U.S.A.
  • Recommended: add Shower Pan Liners to protect pans during construction
Applications
  • Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
  • CFP-30-3660-OS-SF-RENO
Technical Specifications
ModelCurved Front
Pan Size30" - 36" x 60"
MaterialCast Marble
Floor PatternTraditional
FinishMatte, Textured, Non-Slip
Backwall60"
Side Walls30" on short side, 36" backwall to center of front curb
Drain LocationOffset - (specify left or right)
Center of Drain Measures15" from backwall, 8 1/2" from side wall
DimensionsNOTE: Finished product dimensions may vary +/- 1/8" from drawings
Drain Opening3 1/4"
Front Curb3 1/2" w x 3" h
Flange1" on side and backwalls - attached at factory
Weight~ 202#
SlopePan is sloped toward the drain at 2%
CSI Number22 42 23
Colors
Special Notes
Standards and Ratings:

  • CSA B45-5/IAPMO Z124-2011
  • MAS Certified Green. Compliant with ANSI/BIFMA X7.1 Standard
  • ANSI A137.1 (average rating of 0.65)
  • ANSI A326.3 (average rating of 0.72)
  • ANSI/NFSI B101.3 (average rating of 0.66)

Suggested Drains:

  • Sioux Chief Mfg. model: 825-2P – PVC
  • Oatey part number: 42045 – PVC
  • Oatey part number: 42150 – Brass

NOTE: Finished product dimensions may vary +/- 1/8" from drawings

NOTE: Drain is not included with pan
