MM-HINGED
Additional Photos

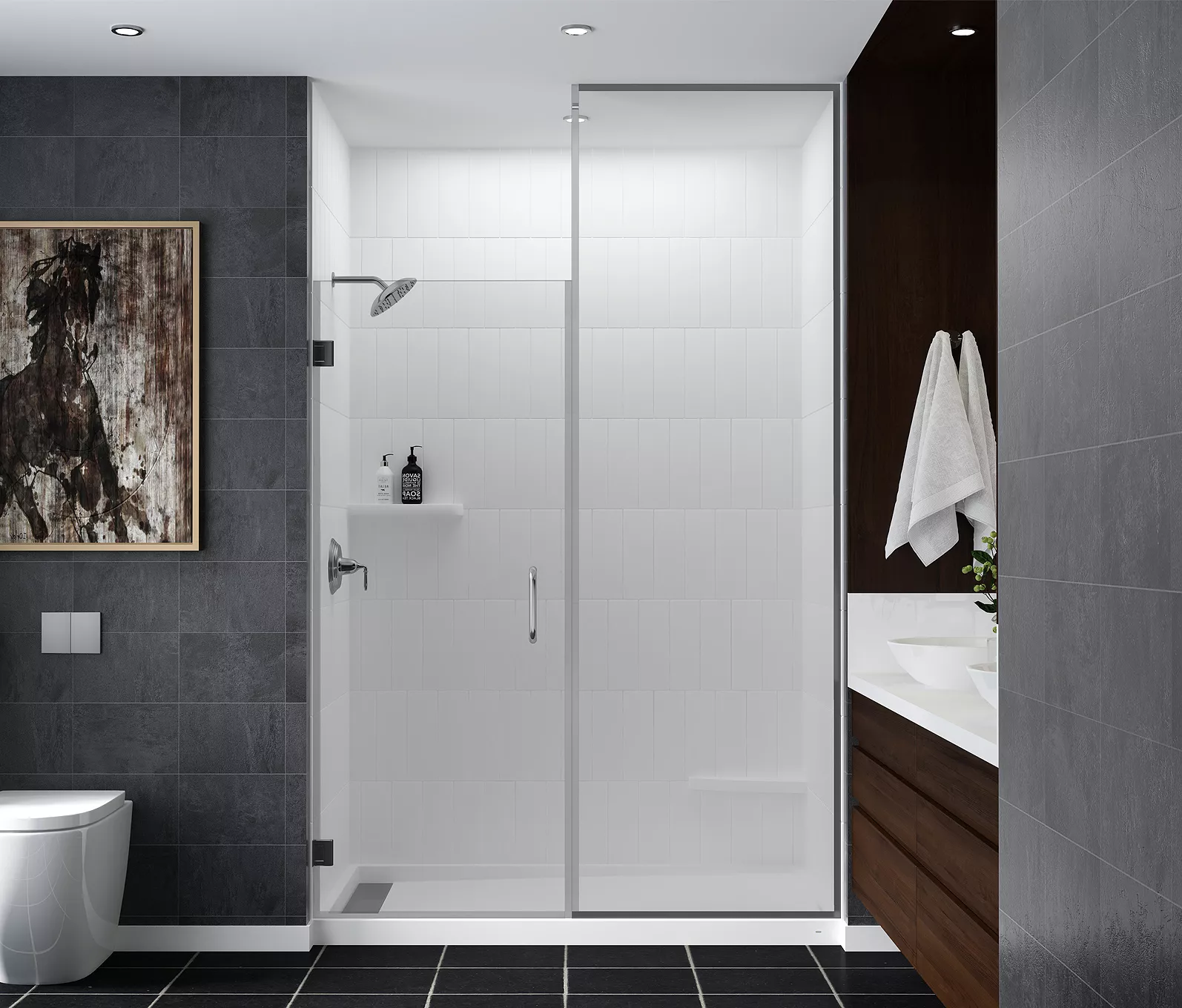

Rendering; MM Hinged - Set
Detail

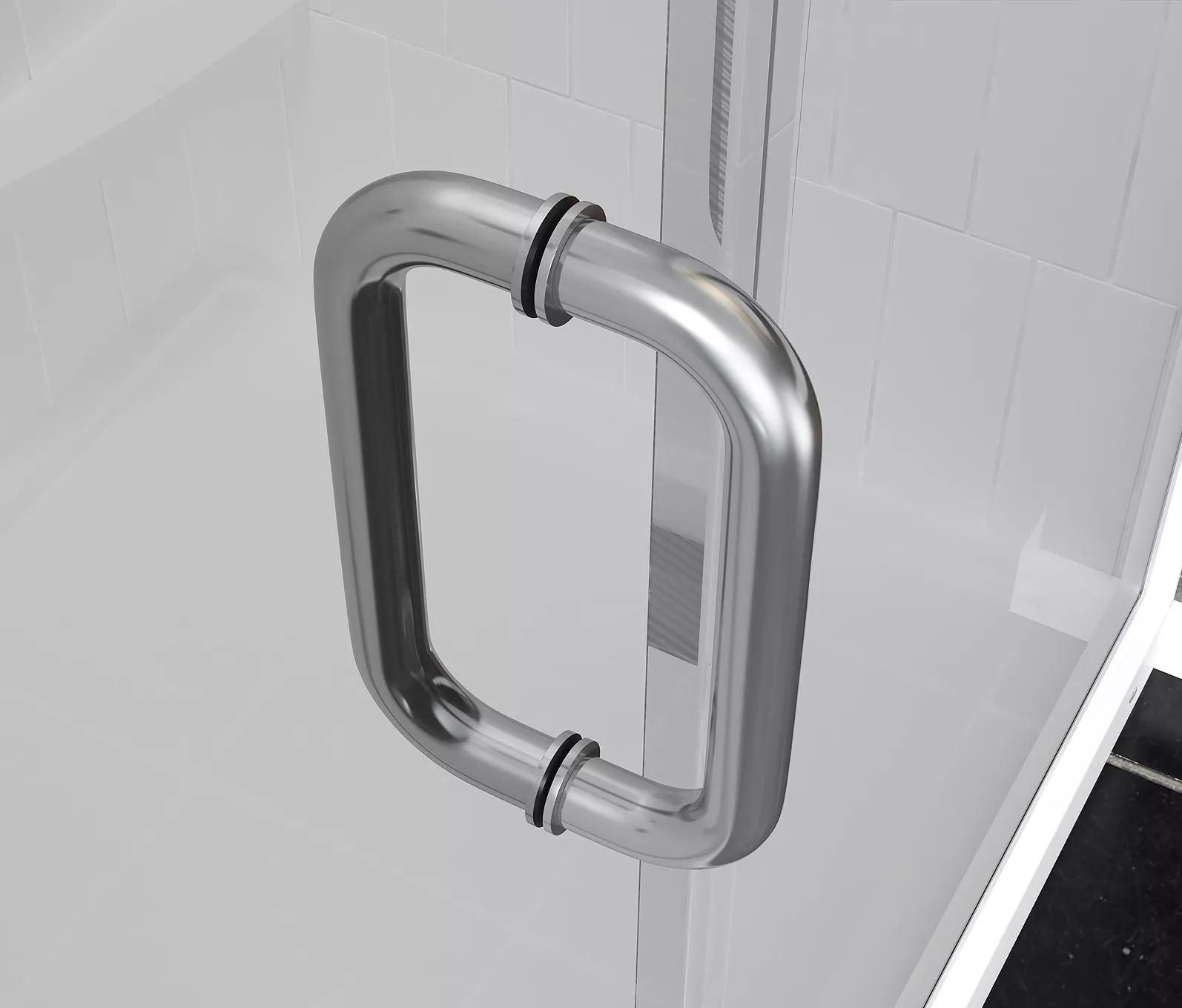

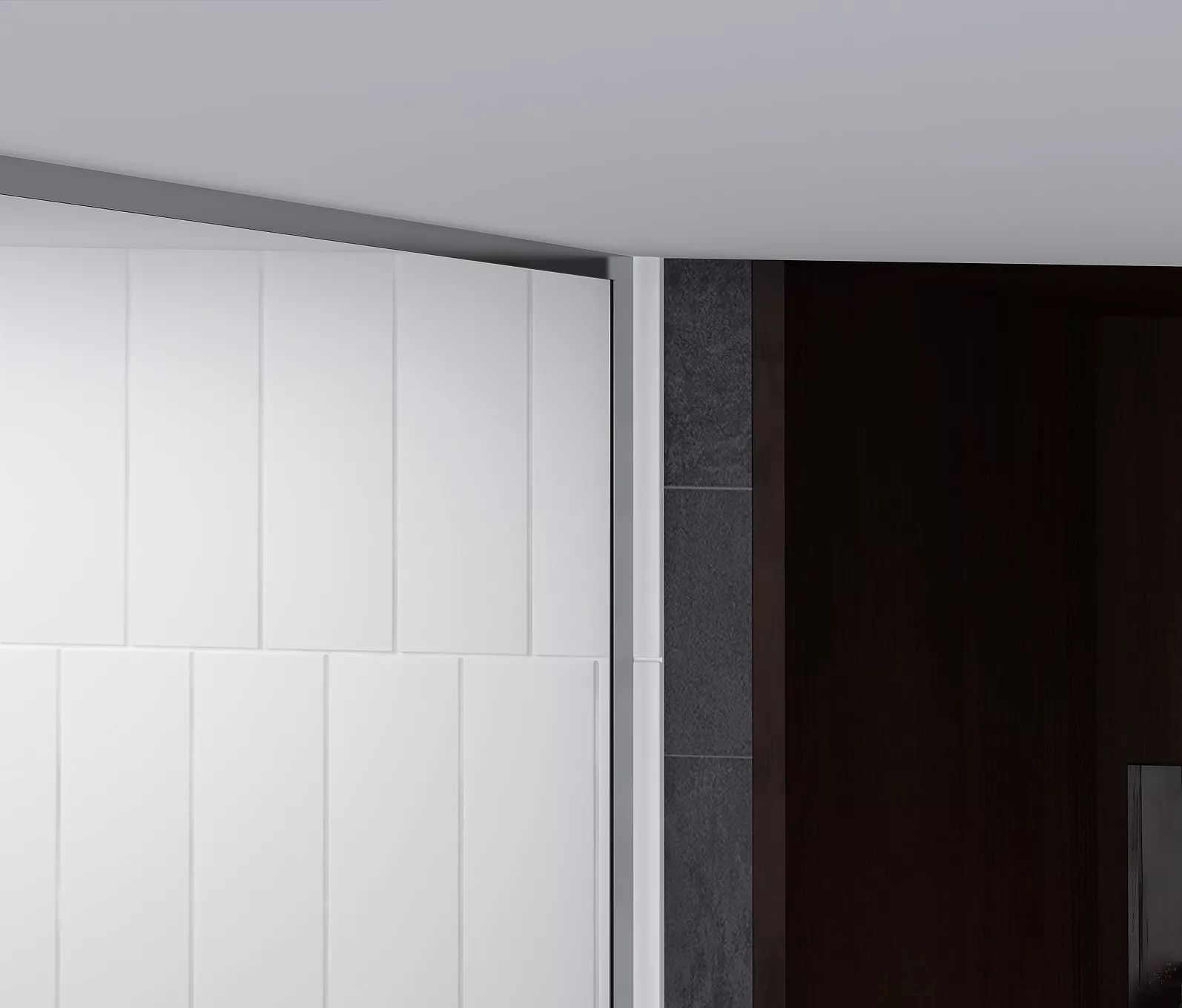

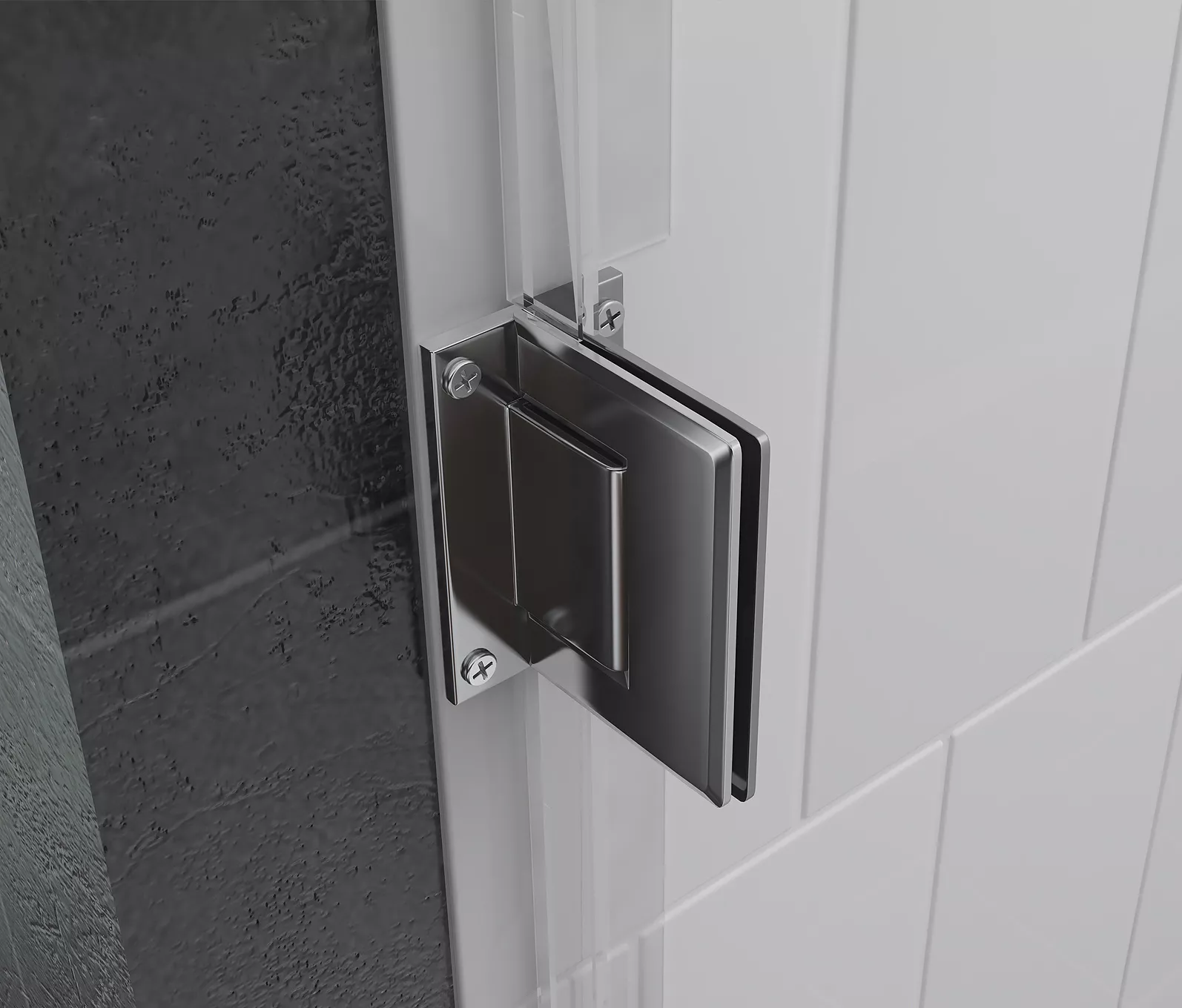

1. Rendering; MM-Hinged - 1-30-17 MM-Hinged - Handle Detail - top bar MM-Hinged - Top and Side Channel - top bar MM-Hniged - Hinge Detail - top bar

Hinged Shower Enclosure

MM-Hinged

Standard Shower Enclosure Guidelines:

  • Product: Shower Enclosures
  • Series: Hinged
  • Door Style: Frameless Swing
  • Height: 74 9/16"
  • Width: 28"
  • Clearance Height: To the ceiling
  • Glass Thickness: 10mm (3/8")
  • Door: Single, Outward Swinging
  • Glass Finish: Tempered, Clear

Fixed Panel Dimensions:

  • Height: Variable - *up to 96"
  • Width: Variable
  • Glass Thickness: 10mm (3/8")
  • Clearance Height: To the ceiling
  • Glass Finish: Tempered, Clear

*Note: These measurements are based on a standard 60" w x 96" h opening. The MM-Hinged Enclosure's heights and widths are variable for the fixed glass panel ONLYand can be ordered to fit specific project requirements. Please include your project specific w x h measurements when placing your order.

*Hardware Finish Options:

  • Brushed Silver Finish
  • Polished Silver Finish

Accessory Options:

  • Robe Holder
  • Towel Bar

Options:

  • Frosted Glass

Additional Product Shown:

*Recommended Colors Clarification: The MM-Hinged Shower Enclosure Hardware Finish Options shown below are for comparison only. We do not offer samples of the different finishes.


Recommended Colors
